Weld gate valve Z961Y/H1
Weld gate valve Z961Y/H2
Weld gate valve Z961Y/H3
Weld gate valve Z961Y/H4

Weld gate valve Z961Y/H

Size Range: DN100, DN225

Pressure: PN100, PN240

Body Materials: 20Cr1MoVA,WCB

Seat Materials: STL, 13Cr

Disc Materials: 12Cr1MoV

Stem Materials: 12Cr1MoV, 2Cr13

Chat online Mail us

Introduction

Parameters



Name Design and manufacture   Pressure Test Weld end
Reference Standard NB/T47044   GB/T 13927 GB/T 12224

Name Body Disc Shaft Seat Actuator
Material 20Cr1MoVA, WCB 12Cr1MoV 12Cr1MoV, 2Cr13 STL， 13Cr Electric actuator

Norminal pressure Gas seal test(MPa) Water seal test (MPa) Shell seal test(MPa) Working tempreature Medium
PN100 0.6 11 15 545℃ Steam
PN240 0.6 26.4 36 300℃
  Water

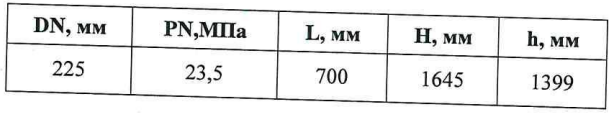

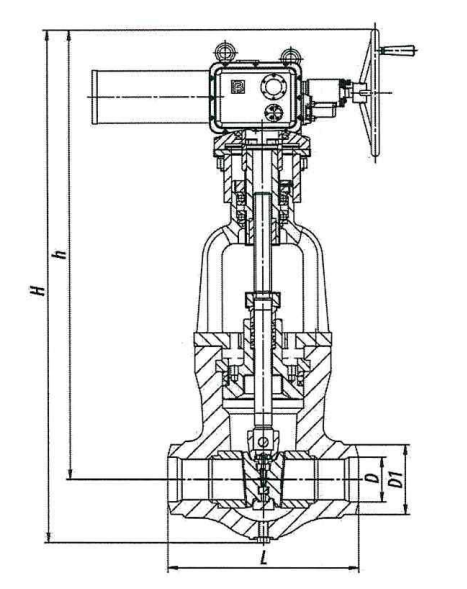

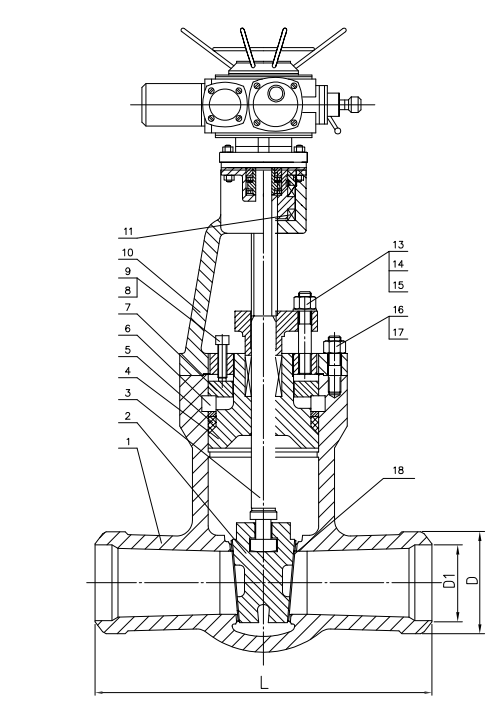

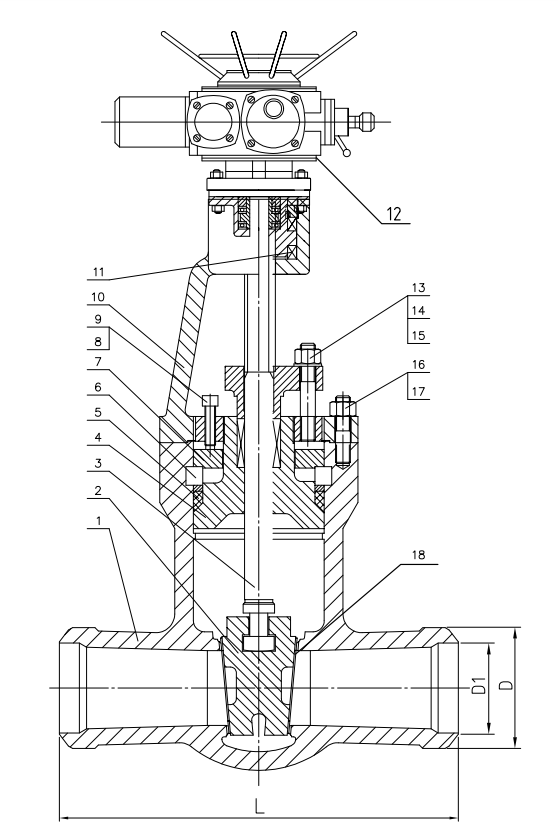

DN L D D1 H h
100 400 108 145 1155 1020
225 700 226 273 1645 1399
Application
