Weld globe valve J61Y/H1
Weld globe valve J61Y/H2
Weld globe valve J61Y/H3
Weld globe valve J61Y/H4

Weld globe valve J61Y/H

Size Range: DN10-DN65

Pressure: PN100, PN240

Body Materials: 12Cr1MoV, A105, WCB

Seat Materials: STL, 13Cr

Disc Materials: 12Cr1MoV

Stem Materials: 1Cr11MoV, 2Cr13, 12Cr1MoV

Chat online Mail us

Introduction

Parameters



Name Design and manufacture   Pressure Test Weld end
Reference Standard NB/T47044   GB/T 13927 GB/T 12459

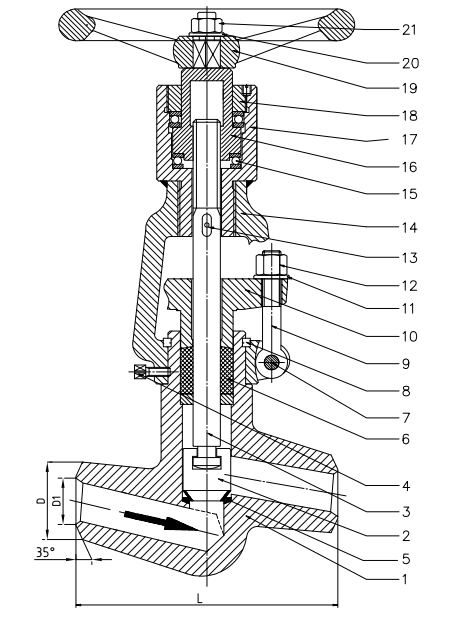

Name Body Disc Shaft Seat Actuator
Material 12Cr1MoV+STL/ A105/ WCB      12Cr1MoV+STL/ 12Cr1MoV  1Cr11MoV/2Cr13/12Cr1MoV 12Cr1MoV+STL/13Cr Handwheel

Norminal pressure Water seal test (MPa) Shell seal test(MPa) Working tempreature Medium
PN100 11 15 545℃ Steam
PN240 26.4 36 300℃ Water

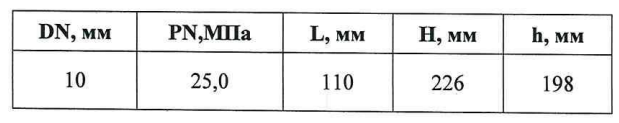

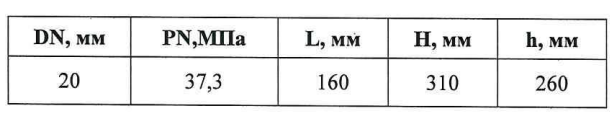

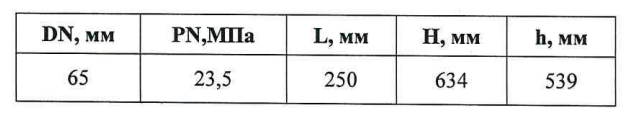

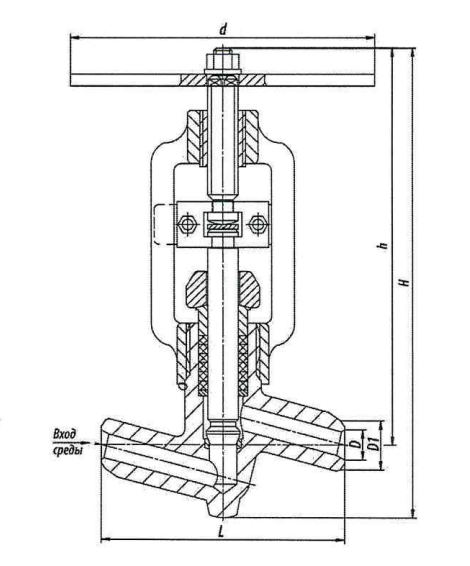

DN L D1 D
10 110 10 16
20 160 22 32
65 250 69 83
